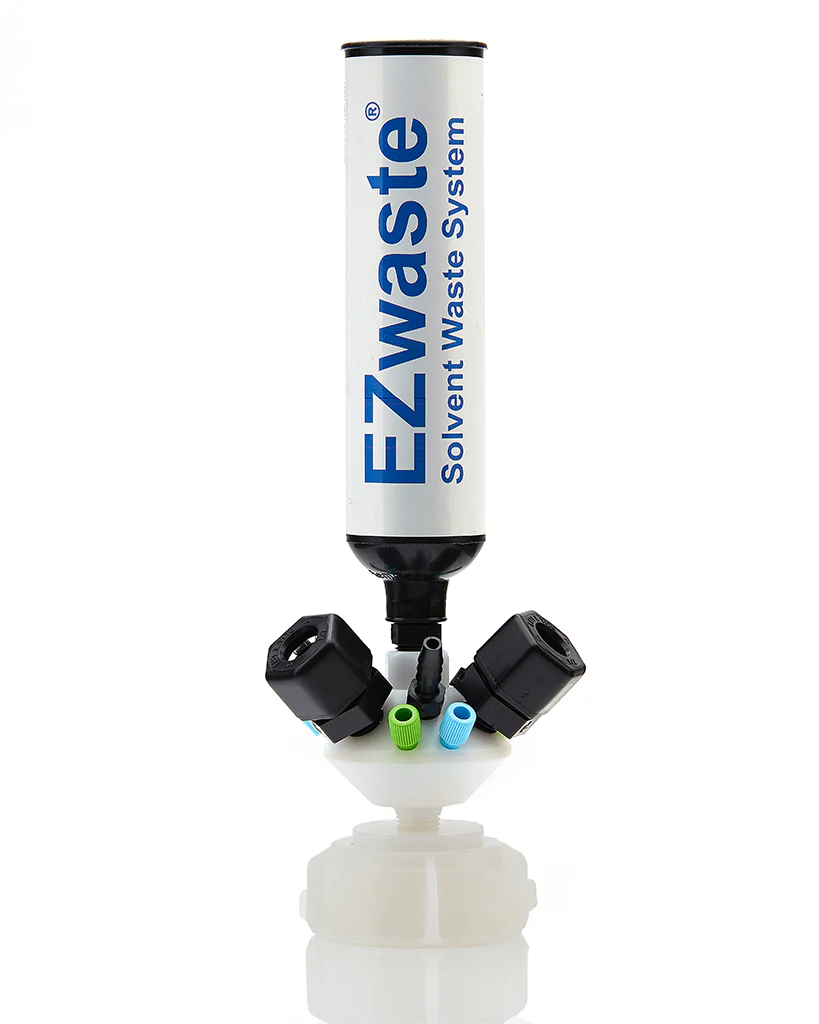

EZWaste® Universal Stackable HPLC 51S UN/DOT Cap Assy, Exhaust Filter, 6x OD Tube 3.2mm & 1.6mm, 3x Hose Barb 3.2mm & 9.5mm, 3x OD Tube 12.7mm, 1/EA
EZWaste® Universal Stackable HPLC 51S UN/DOT Cap Assy, Exhaust Filter, 6x OD Tube 3.2mm & 1.6mm, 3x Hose Barb 3.2mm & 9.5mm, 3x OD Tube 12.7mm, 1/EA
Foxx Life Sciences EZwaste® Universal Stackable HPLC VersaCap® 51S Solvent Waste Assembly is designed to be an affordable solution for HPLC liquid waste disposal. Each system is manufactured to safely collect waste from multiple HPLC machines. This system features an activated carbon filter that traps volatile organic compounds from being released into the air. This prevents chemicals from being inhaled by lab workers and provides a safer mechanism of disposal for vapor wastes. The EZwaste® HPLC Solvent Waste system also features a closed-loop design that protects against leaks and spills, improving overall lab safety.
In EZwaste® Universal Stackable design you can add multiple manifolds for increased fittings very conveniently as per requirement. Each EZwaste® Assembly includes a VersaCap® 51S, Universal Stackable Manifold with 6-3-3-Ports, 6 x fittings of 3.2 mm (1/8") OD Tubing, 6 x fittings of 1.6 mm (1/16") OD Tubing, 3 x fittings of 3.2 mm (1/8") Hose Barb, 3 x fittings of 9.5mm (3/8") Hose Barb, 3 x fittings of 12.7mm (1/2") OD Tubing, 1 carbon Exhaust Filter and all suitable plugs/adapters for blocking off unused ports. So EZWaste® Universal Stackable HPLC VersaCap® 51S UN/DOT Solvent Waste Cap Assembly can be used to use with all types of HPLC machines. * Depending on the application, the carbon exhaust filter life cycle may vary.
Specifications
- Cap Material: Polypropylene
- Cap Size: 51S
- OD Tubing Ports: 3x 1/8" or 1/16" - 3x 1/4"
- Hose Barb: 3x 1/4" HB & 3/8" HB
- Filter Length: 6.97" (177mm)
- Filter Base Diameter: 1.89" (48mm)
- Filter Top Diameter: 1.73" (44mm)
- Filter thread: 1/4"
